Interface for the FileSystem layer. More...

#include "sfs/disk.h"
#include <cstring>
#include <vector>
#include <stdint.h>

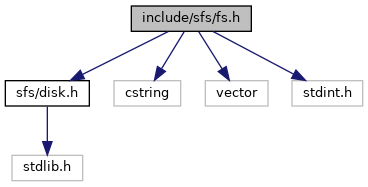

Include dependency graph for fs.h:

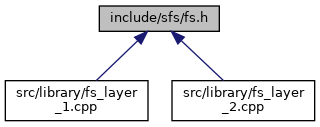

This graph shows which files directly or indirectly include this file:

Classes
class	FileSystem
	FileSytem Class. Contains fs layer to access and store disk blocks. Used by sfssh (shell) to provide access to the end-user. More...

struct	FileSystem::SuperBlock
	SuperBlock structure. It is the first block in any disk. It's main function is to help validating the disk. Contains metadata of the disk. More...

struct	FileSystem::Dirent
	Directory Entry. Contains necessary fields to locate the file and directory Consumes 64 KB per object. Used to store information about a directory. More...

struct	FileSystem::Directory
	Directory Structure. Contains a table of directory entries for storing hierarchy. Also contains fields for Size and Valid bits. Name is matched against the one in Directory entry. Also, it is allocated from end for effectively using disk space. More...

struct	FileSystem::Inode
	Inode Structure Corresponds to a file stored on the disk. Contains the list of raw data blocks used to store the data. Stores the size of the file. More...

union	FileSystem::Block
	Block Union Corresponds to one block of disk of size Disk::BLOCKSIZE. Can be used as a SuperBlock, Inode, Pointers block, or raw Data block. More...

Detailed Description

Interface for the FileSystem layer.

Author: Rudra Desai (rudra.nosp@m.d200.nosp@m.@gmai.nosp@m.l.co.nosp@m.m) & Kairav Shah (shahk.nosp@m.aira.nosp@m.v1702.nosp@m.@gma.nosp@m.il.co.nosp@m.m)

Date: 2020-12-09

Definition in file fs.h.

Class Documentation

◆ FileSystem::SuperBlock

struct FileSystem::SuperBlock

SuperBlock structure. It is the first block in any disk. It's main function is to help validating the disk. Contains metadata of the disk.

Definition at line 148 of file fs.h.

Class Members
uint32_t	Blocks	File system magic number
uint32_t	DirBlocks	Number of blocks reserved for inodes
uint32_t	InodeBlocks	Number of blocks in file system
uint32_t	Inodes	Number of blocks reserved for directories
uint32_t	MagicNumber
char	PasswordHash[257]	Field to check if the disk is password protected
uint32_t	Protected	Number of inodes in file system

◆ FileSystem::Dirent

struct FileSystem::Dirent

Directory Entry. Contains necessary fields to locate the file and directory Consumes 64 KB per object. Used to store information about a directory.

Definition at line 163 of file fs.h.

Class Members
uint32_t	inum	valid bit to check if the entry is valid
char	Name[NAMESIZE]	inum for Inodes or offset for dir
uint8_t	type
uint8_t	valid	type = 1 for file, type = 0 for directory

◆ FileSystem::Directory

struct FileSystem::Directory

Directory Structure. Contains a table of directory entries for storing hierarchy. Also contains fields for Size and Valid bits. Name is matched against the one in Directory entry. Also, it is allocated from end for effectively using disk space.

Definition at line 177 of file fs.h.

Collaboration diagram for FileSystem::Directory:

[legend]

Class Members
uint32_t	inum	Valid bit for validation
char	Name[NAMESIZE]	inum = block_num * DIR_PER_BLOCK + offset
Dirent	Table[ENTRIES_PER_DIR]	Directory Name
uint16_t	Valid

◆ FileSystem::Inode

struct FileSystem::Inode

Inode Structure Corresponds to a file stored on the disk. Contains the list of raw data blocks used to store the data. Stores the size of the file.

Definition at line 190 of file fs.h.

Class Members
uint32_t	Direct[FileSystem::POINTERS_PER_INODE]	Size of file
uint32_t	Indirect	Direct pointers
uint32_t	Size	Whether or not inode is valid
uint32_t	Valid

◆ FileSystem::Block

union FileSystem::Block

Block Union Corresponds to one block of disk of size Disk::BLOCKSIZE. Can be used as a SuperBlock, Inode, Pointers block, or raw Data block.

Definition at line 202 of file fs.h.

Collaboration diagram for FileSystem::Block:
