FileSytem Class. Contains fs layer to access and store disk blocks. Used by sfssh (shell) to provide access to the end-user. More...

#include <fs.h>

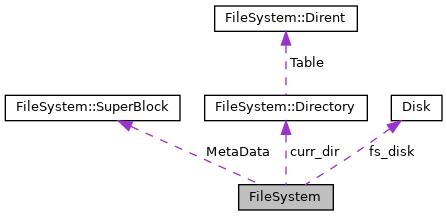

Collaboration diagram for FileSystem:

[legend]

Classes
union	Block
	Block Union Corresponds to one block of disk of size Disk::BLOCKSIZE. Can be used as a SuperBlock, Inode, Pointers block, or raw Data block. More...

struct	Directory
	Directory Structure. Contains a table of directory entries for storing hierarchy. Also contains fields for Size and Valid bits. Name is matched against the one in Directory entry. Also, it is allocated from end for effectively using disk space. More...

struct	Dirent
	Directory Entry. Contains necessary fields to locate the file and directory Consumes 64 KB per object. Used to store information about a directory. More...

struct	Inode
	Inode Structure Corresponds to a file stored on the disk. Contains the list of raw data blocks used to store the data. Stores the size of the file. More...

struct	SuperBlock
	SuperBlock structure. It is the first block in any disk. It's main function is to help validating the disk. Contains metadata of the disk. More...

Public Member Functions
bool	mount (Disk *disk)
	mounts the file system onto the disk More...

bool	set_password ()
	Adds password to the mounted disk (fs_disk). Gives the control to change_password if disk is pasword protected. More...

bool	change_password ()
	Changes password in the mounted disk (fs_disk). Checks the current password and gives control to set_password. More...

bool	remove_password ()
	Removes password from the mounted disk (fs_disk). More...

bool	touch (char name[])
	Creates a file with size 0. Main function is to allocate an Inode and add Dirent to the curr_dir. Error if file already exists. More...

bool	mkdir (char name[])
	Creates an empty directory with the given name Adds 2 Dirent , '.' and '..' in it's table. More...

bool	rmdir (char name[])
	Removes the directory with given name. Also removes all the Dirent in it's table. More...

bool	cd (char name[])
	Change curr_dir to the given Directory name. More...

bool	ls ()
	List all the curr_dir Dirent. More...

bool	rm (char name[])
	Removes the given file/Directory. More...

bool	copyout (char name[], const char *path)
	Copies the file in curr_dir to the path provided. Prints amount of bytes copied. More...

bool	copyin (const char *path, char name[])
	Copies the file with path provided to the curr_dir. Prints amount of bytes copied. Creates a newfile if file doesn't exist. Overwrites the file if already exists. More...

bool	ls_dir (char name[])
	List the Directory given by the name. Called by ls to print curr_dir. Prints a table of Dirent. More...

void	exit ()
	Unmounts the disk and resets pointer. More...

void	stat ()
	Returns the stat of the disk. The stat contains information like number of directories, number of files, block number etc. More...

Static Public Member Functions
static void	debug (Disk *disk)
	prints the basic outline of the disk More...

static bool	format (Disk *disk)
	formats the entire disk More...

Private Member Functions
ssize_t	create ()
	creates a new inode More...

bool	remove (size_t inumber)
	removes the inode More...

ssize_t	stat (size_t inumber)
	check size of an inode More...

ssize_t	read (size_t inumber, char *data, int length, size_t offset)
	read from disk More...

ssize_t	write (size_t inumber, char *data, int length, size_t offset)
	write to the disk More...

bool	load_inode (size_t inumber, Inode *node)
	loads inode corresponding to inumber into node More...

ssize_t	allocate_free_block ()
	allocate the first free block from the disk More...

void	read_helper (uint32_t blocknum, int offset, int length, char data, char *ptr)
	reads the block from disk and changes the pointers accordingly More...

ssize_t	write_ret (size_t inumber, Inode *node, int ret)
	writes the node into the corresponding inode block More...

void	read_buffer (int offset, int read, int length, char data, uint32_t blocknum)
	reads from buffer and writes to a block in the disk More...

bool	check_allocation (Inode *node, int read, int orig_offset, uint32_t &blocknum, bool write_indirect, Block indirect)
	allocates a block if required; if no block is available in the disk; returns false More...

uint32_t	allocate_block ()
	allocates the first free block from free block bitmap More...

Directory	add_dir_entry (Directory dir, uint32_t inum, uint32_t type, char name[])
	Adds directory entry to the cached curr_dir. dir_write_back should be done by the caller. More...

void	write_dir_back (struct Directory dir)
	Writes the Directory back to the disk. More...

int	dir_lookup (Directory dir, char name[])
	Finds a valid entry with the same name. More...

Directory	read_dir_from_offset (uint32_t offset)
	Reads Directory from Dirent offset in curr_dir. More...

Directory	rmdir_helper (Directory parent, char name[])
	Helper function to remove directory from parent directory. More...

Directory	rm_helper (Directory parent, char name[])
	Helper function to remove file/directory from parent directory. More...

Private Attributes
vector< bool >	free_blocks

vector< int >	inode_counter

vector< uint32_t >	dir_counter

struct SuperBlock	MetaData

Directory	curr_dir

Detailed Description

FileSytem Class. Contains fs layer to access and store disk blocks. Used by sfssh (shell) to provide access to the end-user.

Definition at line 131 of file fs.h.

Class Documentation

◆ FileSystem::Block

union FileSystem::Block

Block Union Corresponds to one block of disk of size Disk::BLOCKSIZE. Can be used as a SuperBlock, Inode, Pointers block, or raw Data block.

Definition at line 202 of file fs.h.

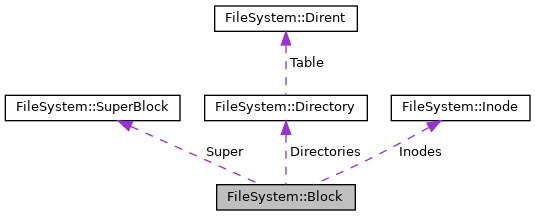

Collaboration diagram for FileSystem::Block:

[legend]

Class Members
char	Data[Disk::BLOCK_SIZE]	Contains indexes of Direct Blocks. 0 if null.ck
struct Directory	Directories[FileSystem::DIR_PER_BLOCK]	Data block
struct Inode	Inodes[FileSystem::INODES_PER_BLOCK]	SuperBlock
uint32_t	Pointers[FileSystem::POINTERS_PER_BLOCK]	Inode block
struct SuperBlock	Super

◆ FileSystem::Directory

struct FileSystem::Directory

Directory Structure. Contains a table of directory entries for storing hierarchy. Also contains fields for Size and Valid bits. Name is matched against the one in Directory entry. Also, it is allocated from end for effectively using disk space.

Definition at line 177 of file fs.h.

Collaboration diagram for FileSystem::Directory:

[legend]

Class Members
uint32_t	inum	Valid bit for validation
char	Name[NAMESIZE]	inum = block_num * DIR_PER_BLOCK + offset
Dirent	Table[ENTRIES_PER_DIR]	Directory Name
uint16_t	Valid

◆ FileSystem::Dirent

struct FileSystem::Dirent

Directory Entry. Contains necessary fields to locate the file and directory Consumes 64 KB per object. Used to store information about a directory.

Definition at line 163 of file fs.h.

Class Members
uint32_t	inum	valid bit to check if the entry is valid
char	Name[NAMESIZE]	inum for Inodes or offset for dir
uint8_t	type
uint8_t	valid	type = 1 for file, type = 0 for directory

◆ FileSystem::Inode

struct FileSystem::Inode

Inode Structure Corresponds to a file stored on the disk. Contains the list of raw data blocks used to store the data. Stores the size of the file.

Definition at line 190 of file fs.h.

Class Members
uint32_t	Direct[FileSystem::POINTERS_PER_INODE]	Size of file
uint32_t	Indirect	Direct pointers
uint32_t	Size	Whether or not inode is valid
uint32_t	Valid

◆ FileSystem::SuperBlock

struct FileSystem::SuperBlock

SuperBlock structure. It is the first block in any disk. It's main function is to help validating the disk. Contains metadata of the disk.

Definition at line 148 of file fs.h.

Class Members
uint32_t	Blocks	File system magic number
uint32_t	DirBlocks	Number of blocks reserved for inodes
uint32_t	InodeBlocks	Number of blocks in file system
uint32_t	Inodes	Number of blocks reserved for directories
uint32_t	MagicNumber
char	PasswordHash[257]	Field to check if the disk is password protected
uint32_t	Protected	Number of inodes in file system

Member Function Documentation

◆ add_dir_entry()

FileSystem::Directory FileSystem::add_dir_entry	(	Directory	dir,
		uint32_t	inum,
		uint32_t	type,
		char	name[]
	)

private

Adds directory entry to the cached curr_dir. dir_write_back should be done by the caller.

Parameters

dir	Directory in which entry is to be added
inum	inum of the File/Directory
type	type = 1 for file , type = 0 for Directory
name	Name of the file/Directory

Returns: Directory with added entry or with valid bit set to 0 incase of error

Implementation details

Find a free Dirent in the Table to be modified
If No Dirent Found, Error
Free Dirent found, add the new one to the table

Definition at line 125 of file fs_layer_2.cpp.

◆ allocate_block()

uint32_t FileSystem::allocate_block ( )

private

allocates the first free block from free block bitmap

Returns: block number of the block allocated; 0 if no block is available

Implementation details

sanity check
iterate through the free bit map and allocate the first free block
disk is full

Definition at line 566 of file fs_layer_1.cpp.

◆ allocate_free_block()

ssize_t FileSystem::allocate_free_block ( )

private

allocate the first free block from the disk

Returns: returns the blocknum of the disk; if the disk is full, returns 0

◆ cd()

bool FileSystem::cd ( char name[] )

Change curr_dir to the given Directory name.

Parameters

name	Directory name to be used.

Returns: true if successful; false incase of error

Implementation details

Read the dirblock from the disk

Definition at line 441 of file fs_layer_2.cpp.

◆ change_password()

bool FileSystem::change_password ( )

Changes password in the mounted disk (fs_disk). Checks the current password and gives control to set_password.

Returns: true if password changed; false incase of error

Implementation details

Sanity Checks
Initializations
Get curr password
Check password
Store it in cached MetaData

Definition at line 57 of file fs_layer_2.cpp.

Here is the call graph for this function:

◆ check_allocation()

bool FileSystem::check_allocation	(	Inode *	node,
		int	read,
		int	orig_offset,
		uint32_t &	blocknum,
		bool	write_indirect,
		Block	indirect
	)

private

allocates a block if required; if no block is available in the disk; returns false

Parameters

node	used to set the size of inode in case allocation fails
read	bytes read from buffer so far
orig_offset	offset passed to write() function call
blocknum	index of block in the free block bitmap
write_indirect	true if the block is an indirect node
indirect	the indirect node if required

Returns: true if allocation is successful; false otherwise

Implementation details

sanity check
if blocknum is 0, then allocate a new block
set size of node and write back to disk if it is an indirect node

Definition at line 635 of file fs_layer_1.cpp.

◆ copyin()

bool FileSystem::copyin	(	const char *	path,
		char	name[]
	)

Copies the file with path provided to the curr_dir. Prints amount of bytes copied. Creates a newfile if file doesn't exist. Overwrites the file if already exists.

Parameters

name	Name of the file to be copied in
path	Path to store the file outside.

Returns: true if successful; false incase of error.

Implementation details

Sanity Checks
Check if file exists. Else create one
Get inode of the created file
Open File for reading
Read File and get the Data
Save the file
Checks to ensure proper write
Endings

Definition at line 526 of file fs_layer_2.cpp.

◆ copyout()

bool FileSystem::copyout	(	char	name[],
		const char *	path
	)

Copies the file in curr_dir to the path provided. Prints amount of bytes copied.

Parameters

name	Name of the file to be copied out
path	Path to store the file outside.

Returns: true if successful; false incase of error.

Implementation details

Sanity Checks
Get table offset for the filename
Open File for copyout
Read from the inode and write it to the File
Endings

Definition at line 485 of file fs_layer_2.cpp.

◆ create()

ssize_t FileSystem::create ( )

private

creates a new inode

Returns: the inumber of the newly created inode

Implementation details

sanity check
read the superblock
locate free inode in inode table
check if inode block is full
find the first empty inode
set the inode to default values

Definition at line 291 of file fs_layer_1.cpp.

◆ debug()

void FileSystem::debug ( Disk * disk )

static

prints the basic outline of the disk

Parameters

disk	the disk to be debugged

Returns: void function; returns nothing

Implementation details

read superblock
verifying the integrity of the file system
printing the superblock
reading the inode blocks
array of inodes
iterating through INODES_PER_BLOCK inodes

iterating through the direct nodes

iterate through the indirect nodes

Definition at line 25 of file fs_layer_1.cpp.

Here is the call graph for this function:

◆ dir_lookup()

int FileSystem::dir_lookup	(	Directory	dir,
		char	name[]
	)

private

Finds a valid entry with the same name.

Parameters

dir	Lookup directory
name	File/Directory Name

Returns: offset into the curr_dir table. -1 incase of error

Implementation details

Search the curr_dir.Table for name
No such dir found

Definition at line 196 of file fs_layer_2.cpp.

◆ exit()

void FileSystem::exit ( )

Unmounts the disk and resets pointer.

Definition at line 477 of file fs_layer_2.cpp.

◆ format()

bool FileSystem::format ( Disk * disk )

static

formats the entire disk

Parameters

disk	the disk to be formatted

Returns: true if the formatting was successful; false otherwise

Implementation details

write superblock
Reinitialising password protection
clear all other blocks
clear individual Inodes
clear all direct Pointers
clear indirect Pointer
Free Data Blocks
Free Directory Blocks
Create Root directory
Create table entries for "." and ".."
Empty the directories

Definition at line 88 of file fs_layer_1.cpp.

Here is the call graph for this function:

◆ load_inode()

bool FileSystem::load_inode	(	size_t	inumber,
		Inode *	node
	)

private

loads inode corresponding to inumber into node

Parameters

inumber	index into inode table
node	pointer to inode

Returns: boolean value indicative of success of the load operation

Implementation details

sanity check
find index of inode in the inode table
load the inode into Inode *node

Definition at line 333 of file fs_layer_1.cpp.

◆ ls()

bool FileSystem::ls ( )

List all the curr_dir Dirent.

Returns: true if successful; false incase of error

Definition at line 461 of file fs_layer_2.cpp.

◆ ls_dir()

bool FileSystem::ls_dir ( char name[] )

List the Directory given by the name. Called by ls to print curr_dir. Prints a table of Dirent.

Parameters

name	Name of the directory to be listed

Returns: true if successful; false incase of error.

Implementation details

Get the directory entry offset
Read directory from block
Sanity checks
Print Directory Data

Definition at line 216 of file fs_layer_2.cpp.

◆ mkdir()

bool FileSystem::mkdir ( char name[] )

Creates an empty directory with the given name Adds 2 Dirent , '.' and '..' in it's table.

Parameters

name	Name of the directory to be added.

Returns: true if successful; false incase of errors

Implementation details

Find empty dirblock
Read empty dirblock
Find empty directory in dirblock
Create new directory
Create 2 new entries for "." and ".."
Add new entry to the curr_dir
Write the new directory back to the disk
Write the curr_dir back to the disk
Increment the counter

Definition at line 245 of file fs_layer_2.cpp.

◆ mount()

bool FileSystem::mount ( Disk * disk )

mounts the file system onto the disk

Parameters

disk	the disk to be mounted

Returns: true if the mount operation was successful; false otherwise

Implementation details

sanity check
read superblock
Handle Password Protection
copy metadata
allocate free block bitmap
allocate inode counter
setting free bit map node 0 to true for superblock
read inode blocks
set free bit map for inode blocks
set free bit map for direct pointers
set free bit map for indirect pointers
Allocate dir_counter

Definition at line 178 of file fs_layer_1.cpp.

Here is the call graph for this function:

◆ read()

ssize_t FileSystem::read	(	size_t	inumber,
		char *	data,
		int	length,
		size_t	offset
	)

private

read from disk

Parameters

inumber	index into the inode table of the corresponding inode
data	data buffer
length	bytes to be read from disk
offset	start point of the read operation

Returns: bytes read from disk; -1 in case of an error

Implementation details

sanity check
IMPORTANT: start reading from index = offset
if offset is greater than size of inode, then no data can be read if length + offset exceeds the size of inode, adjust length accordingly
data is head; ptr is tail
load inode; if invalid, return error
the offset is within direct pointers
calculate the node to start reading from
check if the direct node is valid
read the direct blocks
if length <= 0, then enough data has been read
more data is to be read
check if all the direct nodes have been read completely and if the indirect pointer is valid
read the indirect nodes
if length <= 0, then enough data has been read
data exhausted but the length requested was more
logically, this should never print
data exhausted but the length requested was more
logically, this should never print
inode has no stored data
offset begins in the indirect block
check if the indirect node is valid
change offset accordingly and find the indirect node to start reading from
iterate through the indirect nodes
if length <= 0, then enough data has been read
data exhausted but the length requested was more
logically, this should never print
the indirect node is invalid
inode is invalid

Definition at line 443 of file fs_layer_1.cpp.

◆ read_buffer()

void FileSystem::read_buffer	(	int	offset,
		int *	read,
		int	length,
		char *	data,
		uint32_t	blocknum
	)

private

reads from buffer and writes to a block in the disk

Parameters

offset	starts writing at index = offset
read	bytes read from buffer so far
length	bytes to be written to the disk
data	data buffer
blocknum	index of block in free block bitmap

Returns: void function; returns nothing

Implementation details

sanity check
allocate memory to ptr which acts as buffer for reading from disk
read data into ptr and change pointers accordingly
free the allocated memory

Definition at line 610 of file fs_layer_1.cpp.

◆ read_dir_from_offset()

FileSystem::Directory FileSystem::read_dir_from_offset ( uint32_t offset )

private

Reads Directory from Dirent offset in curr_dir.

Parameters

offset offset of curr_dir.Table which needs to be read.

Returns: Directory. Returns Directory with valid bit=0 incase of error.

Implementation details

Sanity Check
Get offsets and indexes
Read Block

Definition at line 154 of file fs_layer_2.cpp.

◆ read_helper()

void FileSystem::read_helper	(	uint32_t	blocknum,
		int	offset,
		int *	length,
		char **	data,
		char **	ptr
	)

private

reads the block from disk and changes the pointers accordingly

Parameters

blocknum	index into the free block bitmap
offset	start reading from index = offset
length	number of bytes to be read
data	data buffer
ptr	buffer to store the read data

Returns: void function; returns nothing

Implementation details

read the block from disk and change the pointers accordingly

Definition at line 428 of file fs_layer_1.cpp.

◆ remove()

bool FileSystem::remove ( size_t inumber )

private

removes the inode

Parameters

inumber index into the inode table of the inode to be removed

Returns: true if the remove operation was successful; false otherwise

Implementation details

sanity check
check if the node is valid; if yes, then load the inode
decrement the corresponding inode block in inode counter if the inode counter decreases to 0, then set the free bit map to false
free direct blocks
free indirect blocks

Definition at line 361 of file fs_layer_1.cpp.

◆ remove_password()

bool FileSystem::remove_password ( )

Removes password from the mounted disk (fs_disk).

Returns: true if password removed; false incase of error

Implementation details

Initializations
Get current password
Curr password incorrect. Error
Update cached MetaData
Write back the changes

Definition at line 87 of file fs_layer_2.cpp.

◆ rm()

bool FileSystem::rm ( char name[] )

Removes the given file/Directory.

Parameters

name	Entry to be removed

Returns: true if successful; false incase of error

Definition at line 468 of file fs_layer_2.cpp.

◆ rm_helper()

FileSystem::Directory FileSystem::rm_helper	(	Directory	parent,
		char	name[]
	)

private

Helper function to remove file/directory from parent directory.

Parameters

parent	Parent Directory which contains name
name	File/Directory to be removed

Returns: Directory. Returns Directory with valid bit=0 incase of error.

Implementation details

Get the offset for removal
Check if directory
Get inumber
Remove the inode
Remove the entry
Write back the changes

Definition at line 364 of file fs_layer_2.cpp.

◆ rmdir()

bool FileSystem::rmdir ( char name[] )

Removes the directory with given name. Also removes all the Dirent in it's table.

Parameters

name	Name of the Directory to be deleted

Returns: true if successful; false incase of errors.

Implementation details

Definition at line 397 of file fs_layer_2.cpp.

◆ rmdir_helper()

FileSystem::Directory FileSystem::rmdir_helper	(	Directory	parent,
		char	name[]
	)

private

Helper function to remove directory from parent directory.

Parameters

parent	Directory from which the other directory is to be removed.
name	Name of the directory to be removed

Returns: Directory. Returns Directory with valid bit=0 incase of error.

Implementation details

initializations
Sanity Checks
Get offset of the directory to be removed
Get block
Check Directory
Check if it is root directory
Remove all Dirent in the directory to be removed
Read the block again, because the block may have changed by Dirent
Write it back
Remove it from the parent
Update the counter

Definition at line 306 of file fs_layer_2.cpp.

◆ set_password()

bool FileSystem::set_password ( )

Adds password to the mounted disk (fs_disk). Gives the control to change_password if disk is pasword protected.

Returns: true if New password is set; false incase of error

Implementation details

Sanity checks
Initializations
Get new password
Set cached MetaData to Protected

Definition at line 27 of file fs_layer_2.cpp.

Here is the caller graph for this function:

◆ stat() [1/2]

void FileSystem::stat ( )

Returns the stat of the disk. The stat contains information like number of directories, number of files, block number etc.

Returns: true if successful; false incase of error

Implementation details

Sanity checks
Read Super Block and print MetaData
Read directory blocks
Read Directoreis in each directory block
Read Table Entries for each directory

Definition at line 583 of file fs_layer_2.cpp.

◆ stat() [2/2]

ssize_t FileSystem::stat ( size_t inumber )

private

check size of an inode

Parameters

inumber index into the inode table of inode whose size is to be determined

Returns: size of the inode; -1 if the inode is invalid

Implementation details

sanity check
load inode; if valid, return its size

Definition at line 412 of file fs_layer_1.cpp.

◆ touch()

bool FileSystem::touch ( char name[] )

Creates a file with size 0. Main function is to allocate an Inode and add Dirent to the curr_dir. Error if file already exists.

Parameters

name	Name of the file to be added

Returns: true if successful; false incase of error

Implementation details

Check if such file exists
Allocate new inode for the file
Add the directory entry in the curr_directory
Write back the changes

Definition at line 410 of file fs_layer_2.cpp.

◆ write()

ssize_t FileSystem::write	(	size_t	inumber,
		char *	data,
		int	length,
		size_t	offset
	)

private

write to the disk

Parameters

inumber	index into the inode table of the corresponding inode
data	data buffer
length	bytes to be written to disk
offset	start point of the write operation

Returns: bytes written to disk; -1 in case of an error

Implementation details

sanity check
insufficient size
if the inode is invalid, allocate inode. need not write to disk right now; will be taken care of in write_ret()
set size of the node
check if the offset is within direct pointers
find the first node to start writing at and change offset accordingly
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
read from data buffer
enough data has been read from data buffer
store in direct pointers till either one of the two things happen:

all the data is stored in the direct pointers
the data is stored in indirect pointers

start writing into direct nodes
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
enough data has been read from data buffer
check if the indirect node is valid
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
initialise the indirect nodes
write into indirect nodes
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
enough data has been read from data buffer
space exhausted
offset begins in indirect blocks
find the first indirect node to write into and change offset accordingly
check if the indirect node is valid
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
initialise the indirect nodes
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
enough data has been read from data buffer
write into indirect nodes
check if the node is valid; if invalid; allocates a block and if no block is available, returns false
enough data has been read from data buffer
space exhausted
error

Definition at line 658 of file fs_layer_1.cpp.

◆ write_dir_back()

void FileSystem::write_dir_back ( struct Directory dir )

private

Writes the Directory back to the disk.

Parameters

dir	Valid Directory to be written back

Implementation details

Get block offset and index
Read Block
Write the Dirblock

Definition at line 178 of file fs_layer_2.cpp.

◆ write_ret()

ssize_t FileSystem::write_ret	(	size_t	inumber,
		Inode *	node,
		int	ret
	)

private

writes the node into the corresponding inode block

Parameters

inumber	index into inode table
node	the inode to be written back to disk
ret	the value that is returned by the function

Returns: returns the parameter ret

Implementation details

sanity check
find index of inode in the inode table
store the node into the block
return ret

Definition at line 587 of file fs_layer_1.cpp.

Member Data Documentation

◆ curr_dir

Directory FileSystem::curr_dir

private

Caches curr dir to save a disk-read

Definition at line 325 of file fs.h.

◆ dir_counter

vector<uint32_t> FileSystem::dir_counter

private

Stores the number of Inode contained in an Inode Block

Definition at line 214 of file fs.h.

◆ free_blocks

vector<bool> FileSystem::free_blocks

private

Stores disk pointer after successful mounting

Definition at line 212 of file fs.h.

◆ inode_counter

vector<int> FileSystem::inode_counter

private

Stores whether a block is free or not

Definition at line 213 of file fs.h.

◆ MetaData

struct SuperBlock FileSystem::MetaData

private

Stores the number of Directory contianed in a Directory Block

Definition at line 215 of file fs.h.

The documentation for this class was generated from the following files:

include/sfs/fs.h
src/library/fs_layer_1.cpp
src/library/fs_layer_2.cpp

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Class Documentation

◆ FileSystem::Block

◆ FileSystem::Directory

◆ FileSystem::Dirent

◆ FileSystem::Inode

◆ FileSystem::SuperBlock

Member Function Documentation

◆ add_dir_entry()

◆ allocate_block()

◆ allocate_free_block()

◆ cd()

◆ change_password()

◆ check_allocation()

◆ copyin()

◆ copyout()

◆ create()

◆ debug()

◆ dir_lookup()

◆ exit()

◆ format()

◆ load_inode()

◆ ls()

◆ ls_dir()

◆ mkdir()

◆ mount()

◆ read()

◆ read_buffer()

◆ read_dir_from_offset()

◆ read_helper()

◆ remove()

◆ remove_password()

◆ rm()

◆ rm_helper()

◆ rmdir()

◆ rmdir_helper()

◆ set_password()

◆ stat() [1/2]

◆ stat() [2/2]

◆ touch()

◆ write()

◆ write_dir_back()

◆ write_ret()

Member Data Documentation

◆ curr_dir

◆ dir_counter

◆ free_blocks

◆ inode_counter

◆ MetaData
